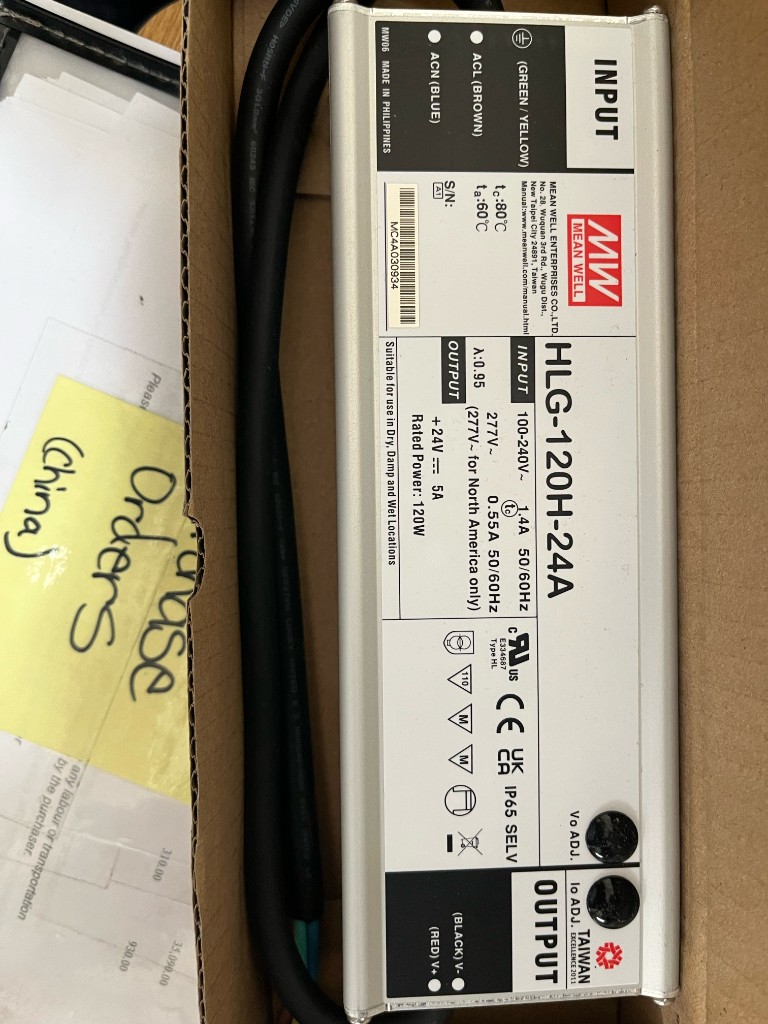

Mean Well HLG-120H-24A 120W 24V 5A Constant Voltage LED Driver Power Supply (HLG-120H-24A)
Original price was: $96.70.$76.99Current price is: $76.99.
1 in stock
Mean Well HLG-120H-24A 120W single-output LED driver with 24V constant voltage and 5A constant current. IP65/IP67 rated for indoor and outdoor landscape lighting installations. Features built-in active PFC, 3-in-1 dimming (1-10V, PWM, resistance), and a 7-year Mean Well warranty. Suitable for LED strip lighting, landscape fixtures, and commercial LED applications.
Input
- Input Voltage: 90-305VAC / 127-431VDC (universal)
- Input Current: 1.4A (100-240V) / 0.55A (277V, North America only)
- Frequency: 50/60Hz
- Power Factor: greater than 0.95
Output
- Output Voltage: +24V DC
- Output Current: 5A (constant current)
- Rated Power: 120W
- Adjustable output voltage and current via internal potentiometers (Vo ADJ / Io ADJ)
Protections
- Short circuit protection (constant current limiting, auto-recovery)
- Over voltage protection
- Over temperature protection (shut down and auto-recovery)
Environment
- IP Rating: IP65 (suitable for Dry, Damp, and Wet locations)
- Operating Temperature: -40C to +70C
- Maximum Case Temperature: 80C
- Humidity: 20-95% RH
Certifications
- UL / cUL Listed
- CE Marked
- RoHS Compliant
- Made in Taiwan
Features
- Built-in active PFC function
- 3-in-1 dimming: 1-10VDC, PWM signal, or resistance
- 4kV surge immunity (IEC 61000-4-5)
- Efficiency up to 93.5%
- Lifetime: 62,000+ hours
- 7-year Mean Well warranty
Applications
- Landscape lighting LED drivers
- LED strip light power supplies
- Commercial and architectural LED lighting
- Outdoor sign and display lighting
- Wet location LED installations
Additional information
| Weight | 1.08 lbs |
|---|---|
| Dimensions | 8.66 × 2.68 × 1.53 in |
